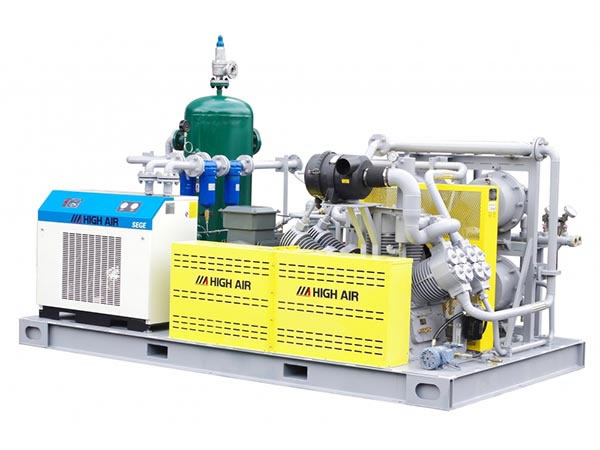

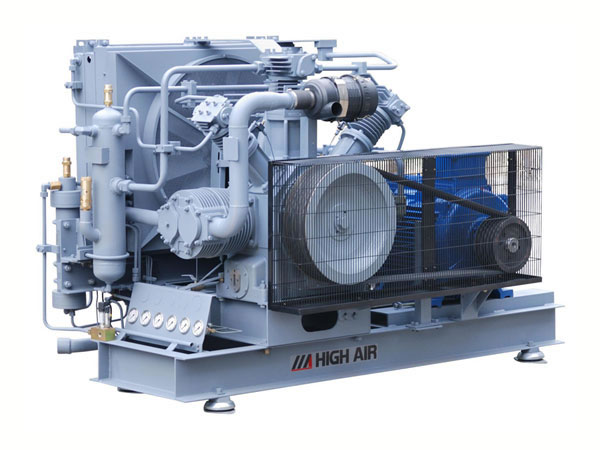

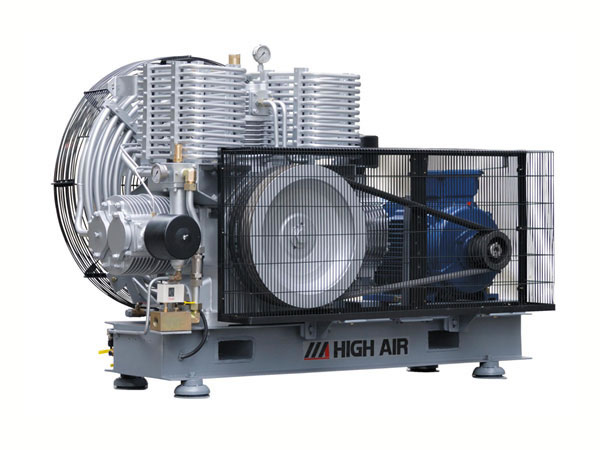

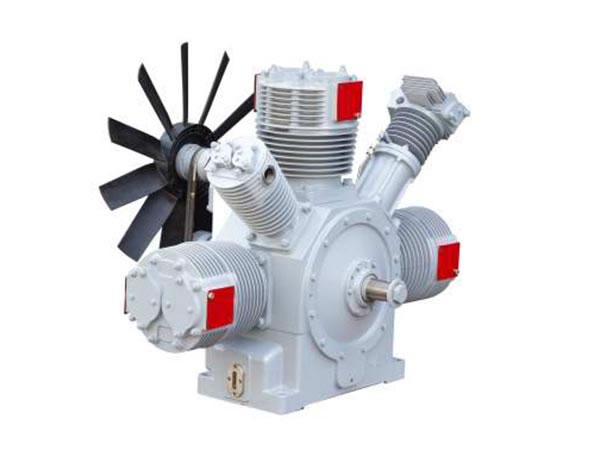

PET Blow Molding Compressor

  •  PET Blow Molding Compressor
  •  PET Blow Molding Compressor
  •  PET Blow Molding Compressor
  •  PET Blow Molding Compressor

Compact one-stop solution
Integrated system
Advanced technology
70CFM to 350CFM/2 to 10M3/min

The low cost solution for the small PET compressor users
Energy-efficient, energy-saving
5M3/min--10M3/min
Turkey solution

Integrated System Available
Dryer, filters and container are integrated with the PET bull compressor, ensuring that they meet high air quality requirements.

High Efficiency, Energy Saving
Thanks to the high efficiency valve and new ring material, the PET bull compressor is incredibly efficient and reduces energy costs.

Low Service Cost
Long lasting valve and ring material extend the service life, reducing the overall maintenance cost.

Low Power Requirement
Multi-compressors system and soft starter require less in electric power supply, less impact on power grid.

Compact Design
Highly efficient coil tubes in the cooler make the PET bull compressor more compact.

PET Compressor Range
Model Capacity Maximum working Speed Motor power Dimension Weight Cooling
M3/MIN Pressure bar RPM KW MM KG
PB2-40A 2.1 40 1250 30 1800*950*1300 1000 AIR
PB3-30A 3.3 30 920 37 1800*950*1300 1000 AIR
PB5-30A 5.3 30 1100 55 2200*1200*1440 1250 AIR
PB4-40A 4.5 40 1300 55 2200*1200*1440 1450 AIR
PB-10W* 10 40 960 110 3700*2100*2060 5000 WATER

* Air-cooled version upon request

PET Air Booster (Inlet Pressure 8barG)
Model Capacity Maximum working Speed Motor power
M3/MIN Pressure bar RPM KW
PV6-30 6 30 850 30
PV6-40 6 40 850 37
PV8-30 8 30 750 37
PV8-40 8 40 750 45
PV10-30 10 30 890 45
PV10-40 10 40 890 55

This is the booster with the inlet pressure 8barG for your reference, we also have boosters for different inlets 6, 7, 8, 9, 10 etc., please contact us for more information!
PET models offer the most advanced energy-efficient technology, low cost and long service life.

This PET blow molding compressor with a capacity of 2m3/min to 10m3/min, is provided by HIGH Air Company, a trustworthy air compressor manufacturer in China. With years of experience in designing and manufacturing compressors, our company can offer a variety of industrial air compressors and natural gas compressors, such as high pressure air compressor, piston compressor, biogas compressor, wellhead gas compressor, etc. Air compression solutions are available to meet client demands.
