Helium cylinder filling
Helium balloon recovery
1.5--8M3/min 20--35MPa
Filter and storage system
The proven time-tested design for your storing
The most advanced technology
Helium and argon
Features
High-performance compressor system for rare gas compressing, purifying, storing, distributing and recovering.
High Air compressors are especially designed for rare gases. The crankcase resists 2.5bar, prevent gas losses, and a special blow by recovery system comes equipped. Low compression ratio and large outlet of each stage is designed to reach low interstage temperature, and the large capacity cooler is equipped for high compression heated gas.
• 1.5--8M3/min 20--35MPa
• Air-cooled or Water-cooled cooler design, meet a variety of application requirements
• Diesel Engine driven upon request
• Full Range Products for various demands
• The time-tested professional design.
Advantages
The universal modular design brings more flexibility and simplicity for the adjustment of the piston, cylinder, cylinder head and valves, so that we can provide customers with the most efficient and economical system.
• Easy to install and maintain
• Low maintenance and operating costs
• No special foundation requirements
• Pressurized crankcase to reduce gas leakage
• High pressure
• Dynamic balance design
• Low vibration
• Low compression ratio and temperature rise
• Efficient
• Suitable for continous or intermittent operating conditions
• Low speed in order to extend the service life
Model | Capacity | Maximum working | Speed | Motor power | Dimension | Weight | Cooling |
M3/MIN | Pressure BAR | RPM | KW | MM | KG | ||
HE-1.5A | 1.5 | 200 | 1000 | 45 | 1800*950*1300 | 1000 | Air |
HE-2.5A | 2.5 | 200 | 1450 | 55 | 2200*1200*1440 | 1450 | Air |
HE-3A | 3 | 200 | 1450 | 55 | 2200*1200*1440 | 1450 | Air |
HE-5A | 5 | 200 | 810 | 110 | 3100*2000*2000 | 4500 | Air |
HE-7A | 7 | 200 | 960 | 132 | 3100*2000*2000 | 4800 | Air |
HE-7W | 7 | 200 | 960 | 132 | 3700*2100*2060 | 5000 | Water |
* High pressure model up to 5000 psig available

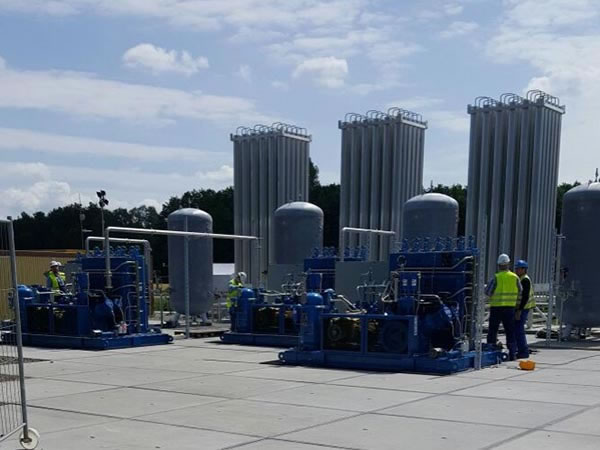

3 HE-7A helium compressors in GermanyHIGH Air Company, as a well-qualified air compressor manufacturer in China, provides this helium compressor with air-cooled or water-cooling cooler design to meet a variety of application requirements. We also offer nitrogen compressors, high pressure compressors, biogas compressors, rotary screw natural gas compressors, as well as air compression solutions in client specific needs.
