Containment Fill Station

  •  Containment Fill Station
  •  Containment Fill Station
  •  Containment Fill Station
  •  Containment Fill Station

NFPA Standard
Designed to meet all of your cylinder filling needs

Tailor-made system

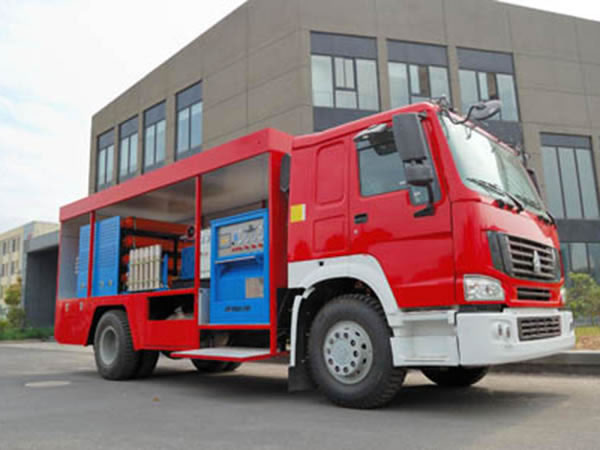

Meet the requirement of portable works

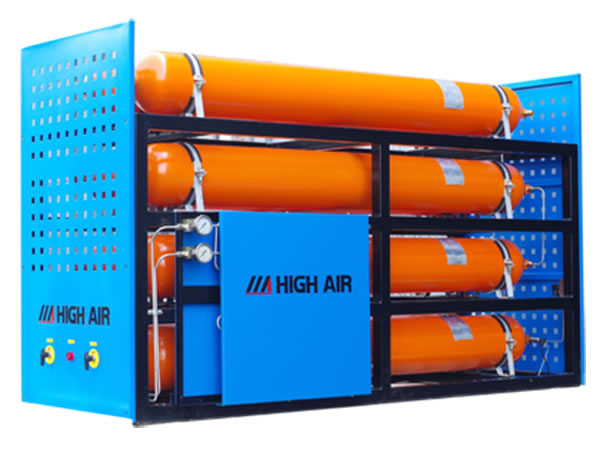

Cascade system
The time-tested design for your gas storage

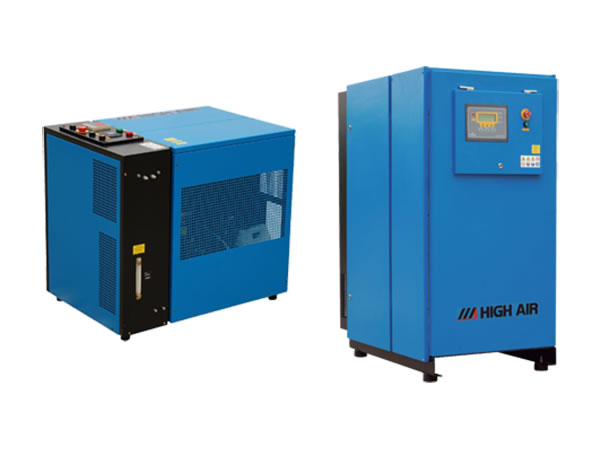

Safer, healthier system
Different package configurations to suit most any needs

SFCR containment fill stations

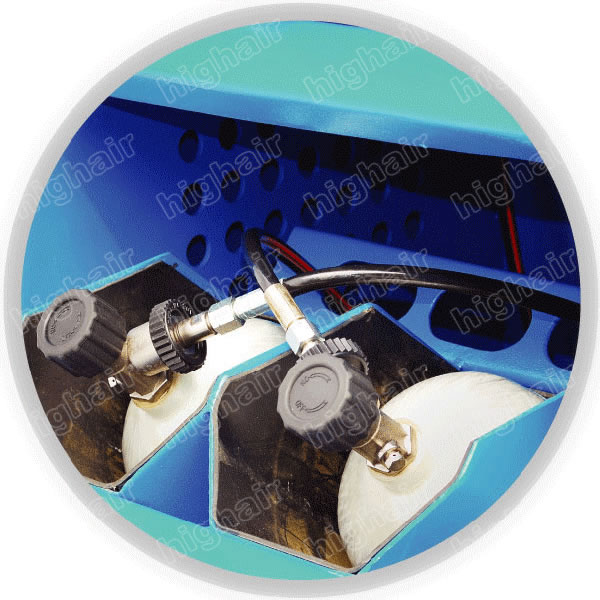

High Air's SFCR containment fill stations offer the ultimate combination of safety and convenience. An enclosed steel chamber offers maximum protection in the event of a catastrophic cylinder failure. Our loading heights are ergonomically designed to reduce operator fatigue. The fill station is ergonomically designed to allow the filling of several SCBA or SCUBA bottles either separately or simultaneously. Access to the enclosure for loading the SCBA /SCUBA cylinders shall be via a manually operated, tilt out door. The fill station door is provided with assisting devices to assure smooth operation and reduce operator fatigue. The fill station door is constructed of 5mm plate steel. The SCBA /SCUBA cradle contains several fill positions. Each fill position is lined with material to protect each SCBA /SCUBA cylinder from abrasion. The carriage is mounted on a pivoting system that will lower the cylinders to a near horizontal position and allow full access to all SCBA /SCUBA bottles, fill hoses and valve assemblies with minimal operator fatigue .

Specifications

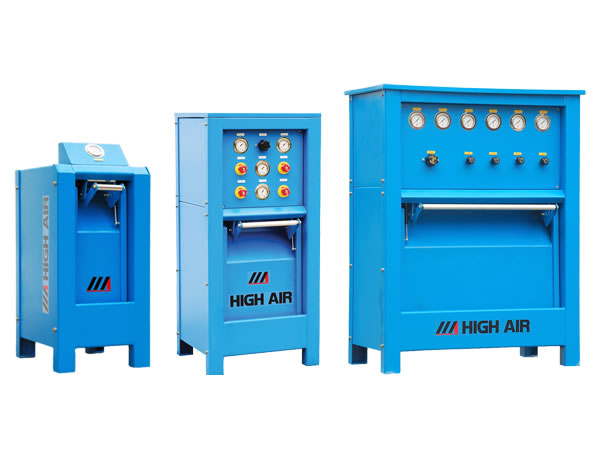

Model Description Dimention mm

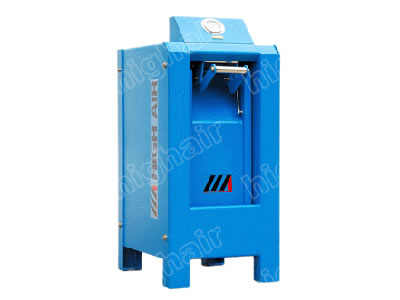

SFC1S 1 cylinder containement cabinet(No valve/Gauge) 431x560x851

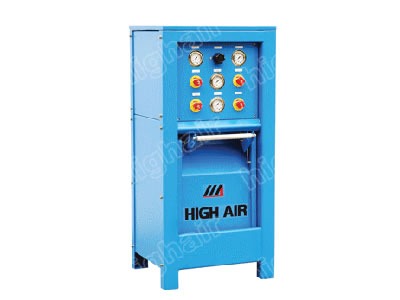

SFC2 2 cylinders containement cabinet 628x560x1339
SFCR2 2 cylinders containement cabinet with regulator 628x560x1339

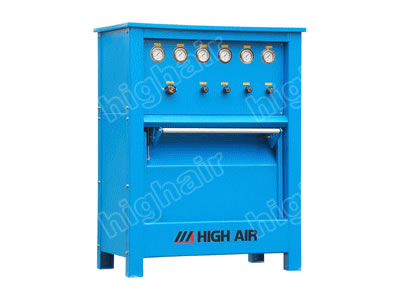

SFC4 4 cylinders containement cabinet 972x560x1339
SFCR4 4 cylinders containement cabinet with regulator 972x 560x1339

Advantages
• Compliant to NFPA standard.
• Dual-layer structure.
• Venting holes for discharge the air instantly.
• Toggel valve shut off the air automatically when door is open.
• Low height of the cylinder filling, easy to operation.
• 6.8L and 9L pneumatic cylinder universal design.
• Strictly control the filling speed to ensure the safety of the carbon fiber bottle.

Supply Standard
Regulator

Safty valve after regulator
2 gauges for regulator (in and out)
Taggel valve (shut off filling when door open)
Filling valves
Bleeding valves
Filling gauges
Rubber on sufface contact cylinder
Exhousting holes
Filling 2 6.9L or 9L cylinders

The containment fill station compliant to NFPA standard is produced by HIGH Air Company, as a reliable air compressor manufacturer in China, our company offers a wide range of natural gas compressors and industrial compressors, including coalbed methane compressor, CNG and biogas compressor, high pressure air compressor, PET compressor, etc. Years of experience in compressor production help us provide air compression solutions to meet client specific needs.
